Overview
|

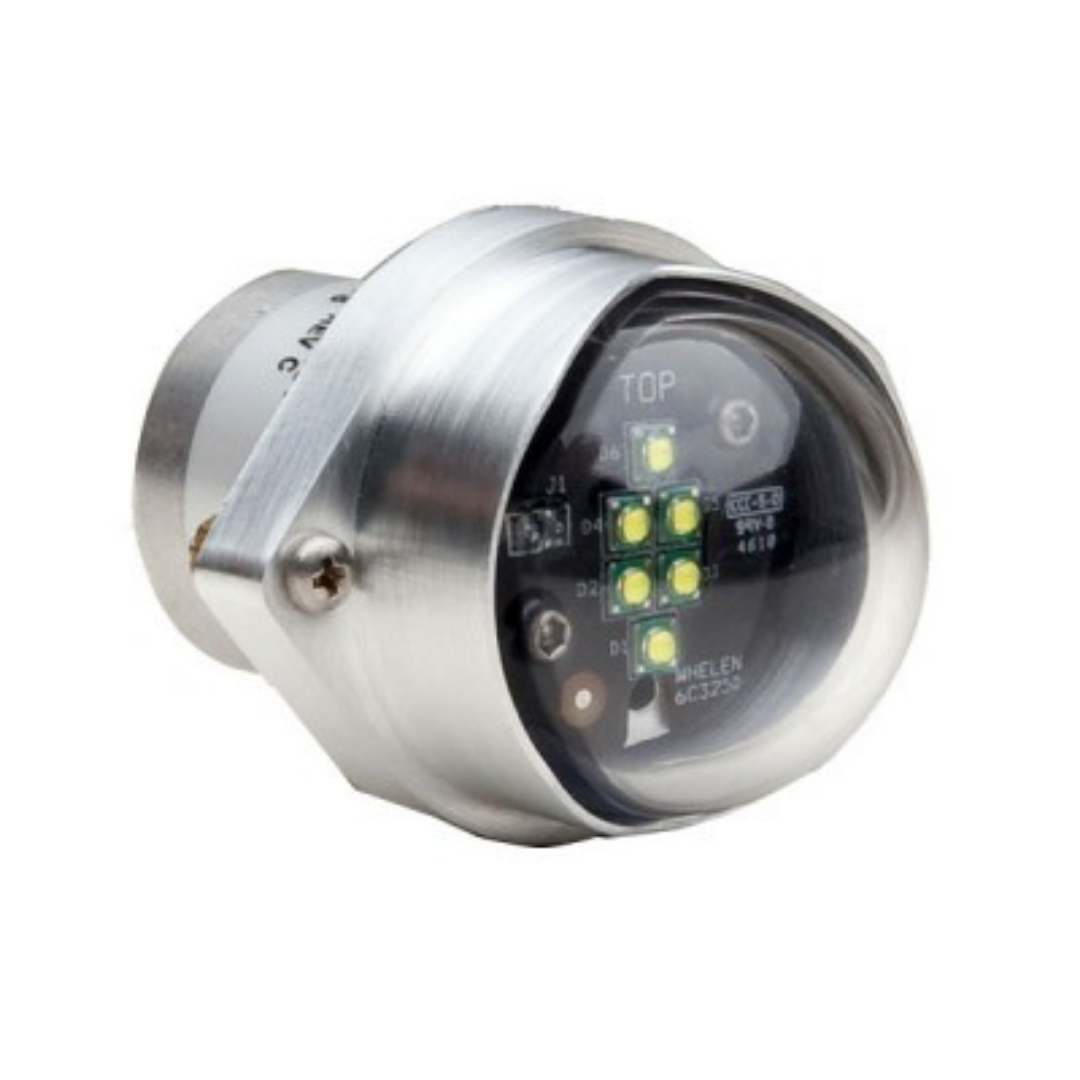

Whelen 71554 Series LED Tail Position Lights are an exact footprint for Whelen Models A555A and 71011 Tail Lights. |
Aircraft Parts, Electrical, LED Lighting, Position Lighting, WAT (formerly Whelen)
01-0771554-11 WHELEN 7155411 14V LED TAIL LIGHT
Part #: 01-0771554-11
01077155411
| Peso | 0.02 lbs |
|---|---|
| Dimensões | 2 × 1 × 1 in |
| Brands |
Specifications
- Drawing: 71554
- Weight: 0.14 lbs
- Dimensions H x W x L Exposed Height: 1.4 (35.56mm) x 1.59 (40.38mm) x 2.07 (52.57mm)
- Current Draw: 0.13 Amps @ 28 VDC 0.26 Amps @ 14 VDC
- Available Colors: Aviation White
- Lenses Clear: Hardcoated Polycarbonate
- STC: STC SA800EA.pdf
