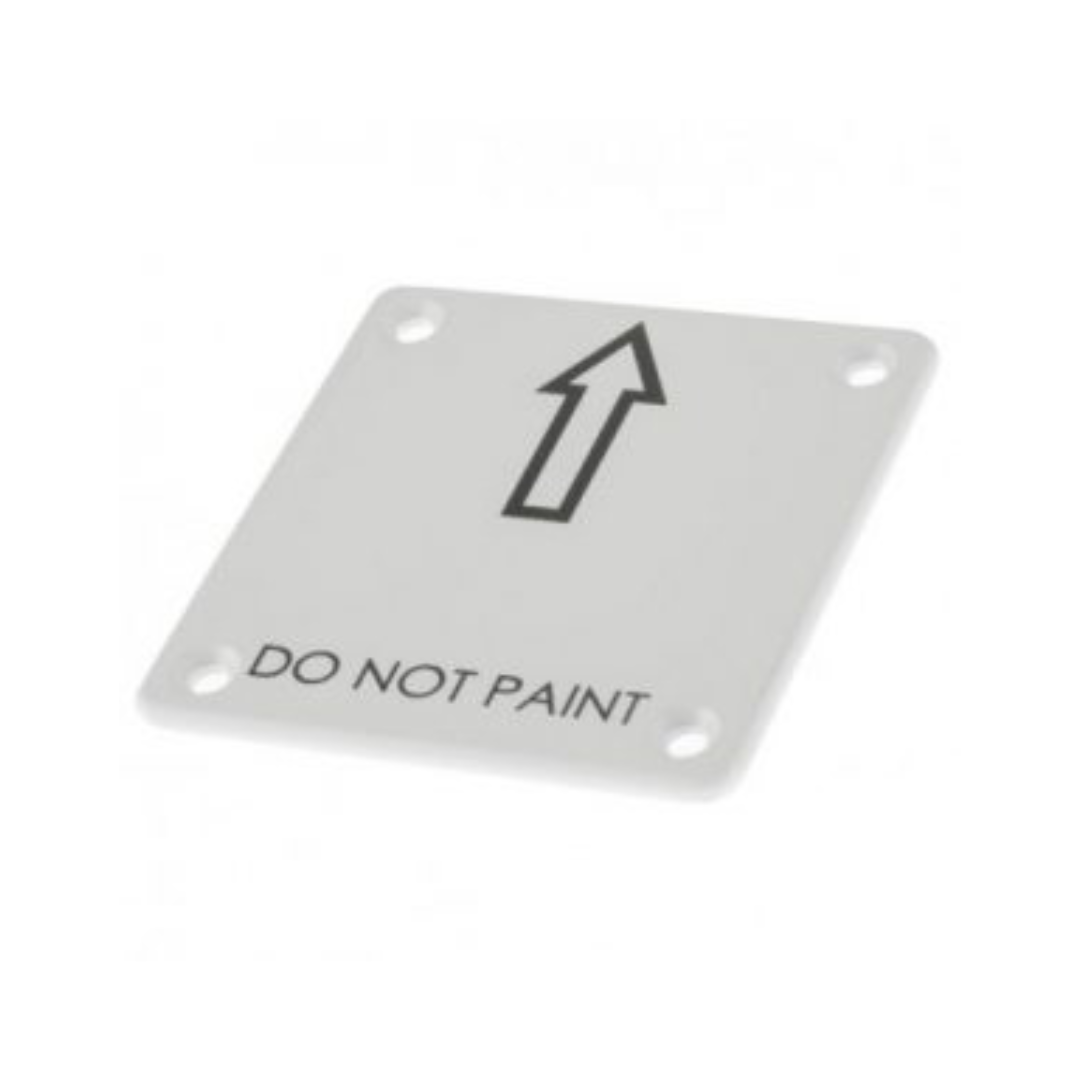

RAMI AV-601 RADAR ANTENNA
Part #: AV-601
AV601
compare
Overview
| The AV-601 antenna is designed specifically to meet FAA TSO-C87a specifications. Qualification testing includes meeting the requirements of EUROCAE ED-30, Edition 2, “Minimum Performance Standards for Airborne Low Range Radar Altimeter Equipment”, as modified by Appendix 1 of the TSO. |
| Weight | .25 lbs |
|---|---|
| Brands |
Specifications
- Application: Airborne Low Range Radar Altimter
- Frequency: 4200-4400 MHz
- Impedance: 50 Ohms
- VSWR: 1.5:1 Max (4275-4325 MHz) / 2.3:1 Max (4200-4400 MHz)
- Polarization: Linear
- Pattern: Roll Plane(E): 45° min.
- Beam Widths: Pitch Plane (H): 40° min.
- Connector: TNC Female
- Max Height: .14″
- RF Power Capacity: 5 watts avg./500 watts max.
- FAA TSO: C87a
