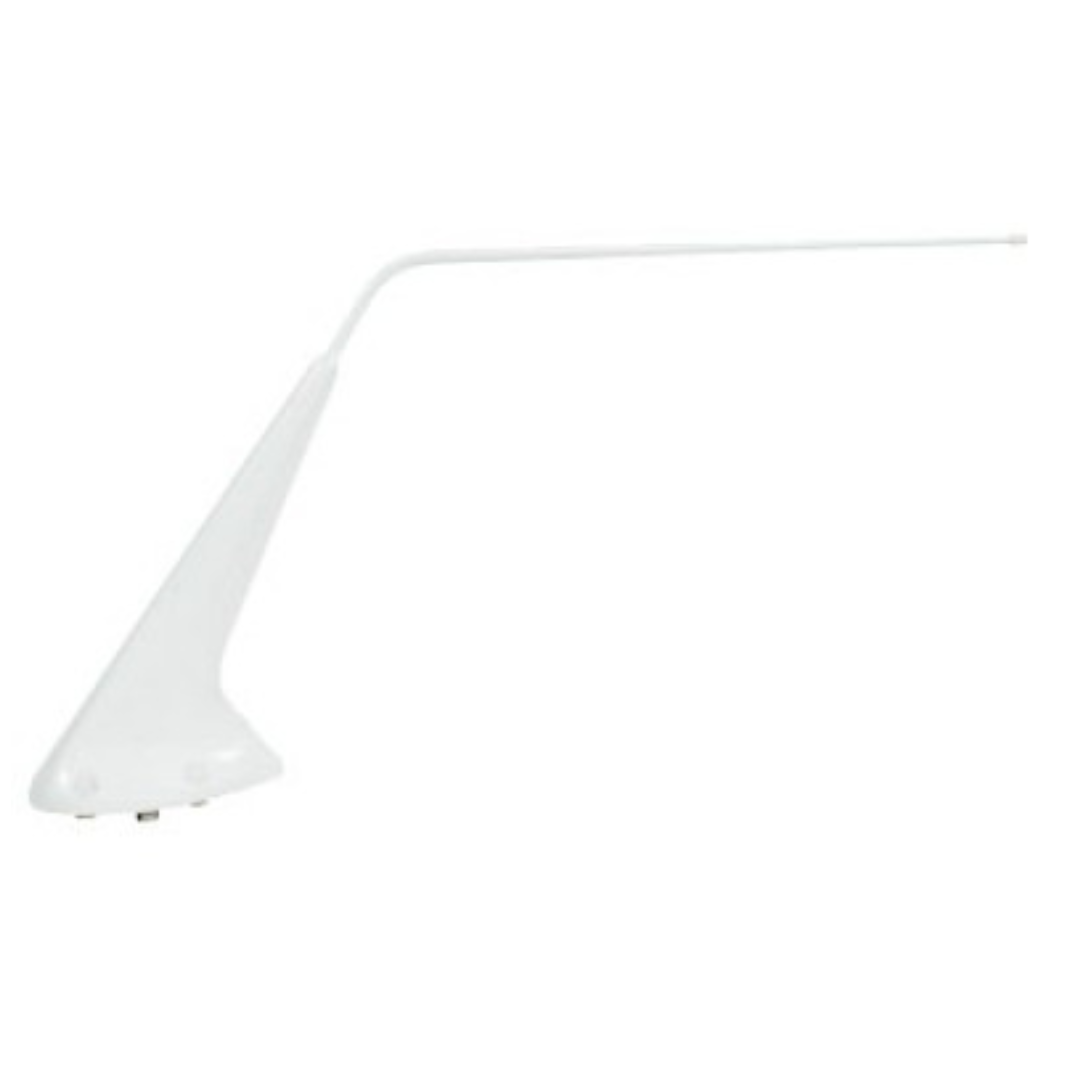

DMC70-4 VHF Antenna, White, BNC Female, 8.9 in H, 118 to 137 MHz, 50 Ohm, Polyurethane
Part #: DMC70-4
DMC704
Call for price
compareOverview
| 118-137MHz TRIMLINE BENT ROD Frequency Range 118-137 MHz The DM C70 Series VHF Communication Antennas are designed for top or bottom installation on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high-electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. The lightweight profile is unobtrusive, resists icing and offers low drag. The DM C70-4 is specifically designed for bottom installations, where ground clearance does not permit the use of other DM C70 Series antennas. The DM C70-4 provides a higher degree of efficiency to assure maximum performance from your transceiver. |
| Weight | 0.75 lbs |
|---|---|
| Brands |
Specifications
- Frequency Range: 118 – 137 MHz
- VSWR: 2.5:1
- Polarization: Vertical
- Radiation Pattern: Omnidirectional
- Impedance: 50 Ohms
- Power: 50 W
- TSO: C37d and C38d
- Weight: 12 oz (0.34 kg)
- Height: 8.9 in. Max
- Finish: White Polyurethane
- Connectors: BNC Female
- Speed Rating: 400 MPH
- D0160c ENV CAT F2-ABCXWFDXSXXXXXXXXXX
