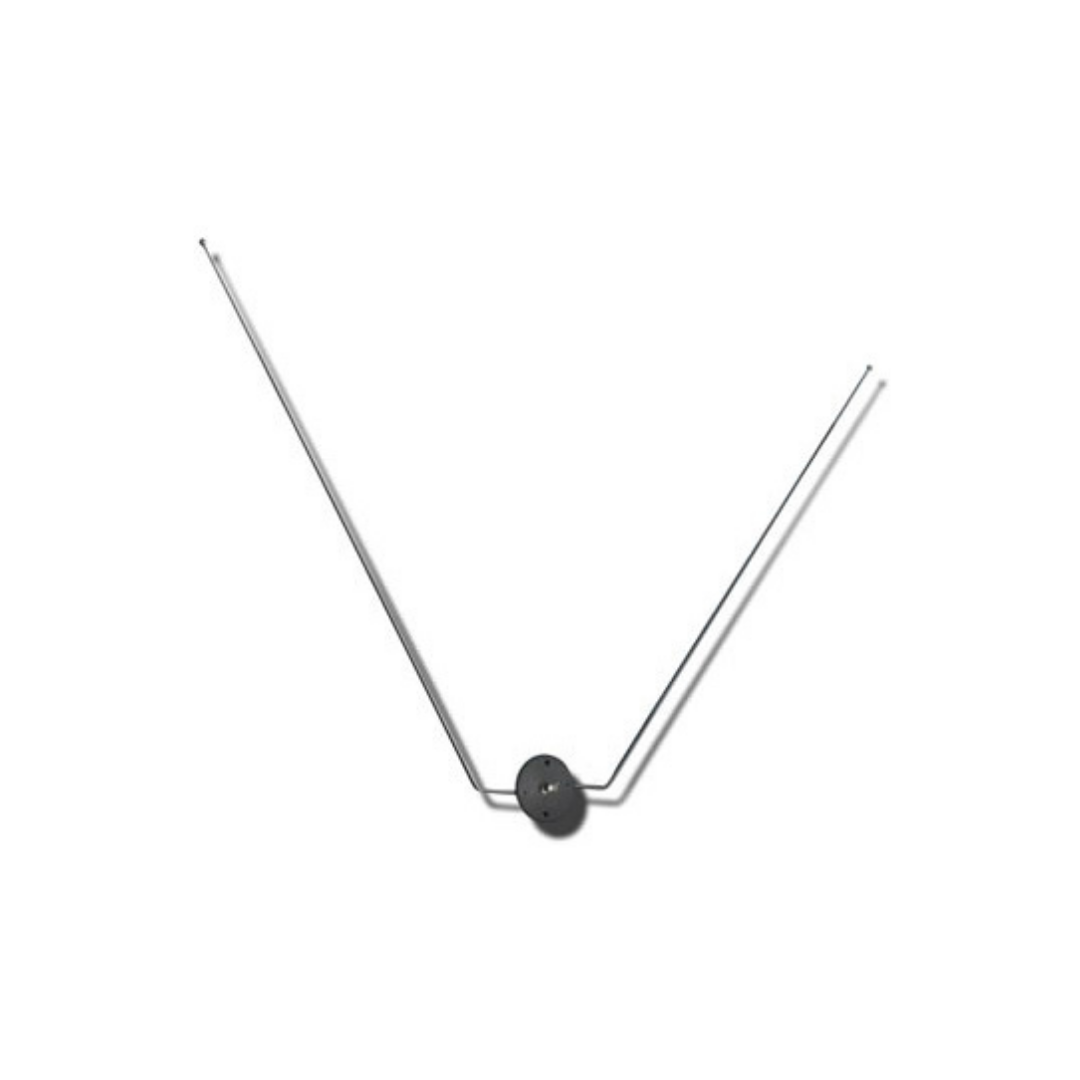

COMANT VOR/LOC/GS ANTENNA CI-157P
Part #: CI-157P
CI157P
R$4,122.52
compareOverview
|
Frequency 108-118 MHz (VOR/LOC) 329-335 MHz (Glide Slope) “V” dipole VOR/ Glide Slope antenna with fixed elements designed specifically for compatibility with the Piper Aircraft mounting. Integral ferrite balun provides for higher radiation efficiency replacing cumbersome coaxial baluns previously utilized. Radiating elements are not removable. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Not approved for helicopter installations. Applications |
| Peso | .5 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 157P V-DIPOLE
|
|
|
Electrical
|
|
|
Frequency
|
108-118 MHz (VOR / LOC) |
|
VSWR
|
3.0:1 108-118 MHz (VOR / LOC)
3.0:1 329-335 MHz (Glide Slope) |
|
Polarization
|
Horizontal
|
|
Radiation Pattern
|
Dipole
|
|
Impedance
|
50 Ohms Nominal
|
|
Power
|
Receive Only
|
|
Mechanical
|
|
|
Weight
|
0.5 lb Maximum
|
|
Height
|
18.00 in. Maximum
|
|
Material
|
Derlin Housing / Stainless Whips
|
|
Finish
|
Black Housing / Stainless Whips
|
|
Connector
|
BNC
|
|
Environmental
|
|
|
Temperature
|
330 KIAS Maximum @ Sea Level
|
|
Altitude
|
4.2 Oz. Maximum
|
|
Air Speed
|
DO-160D
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160C
|
|
FAA TSO
|
C34c, C38c, C40c
|
|
FAA MOPS
|
DO-192, DO-195, DO-196
|
