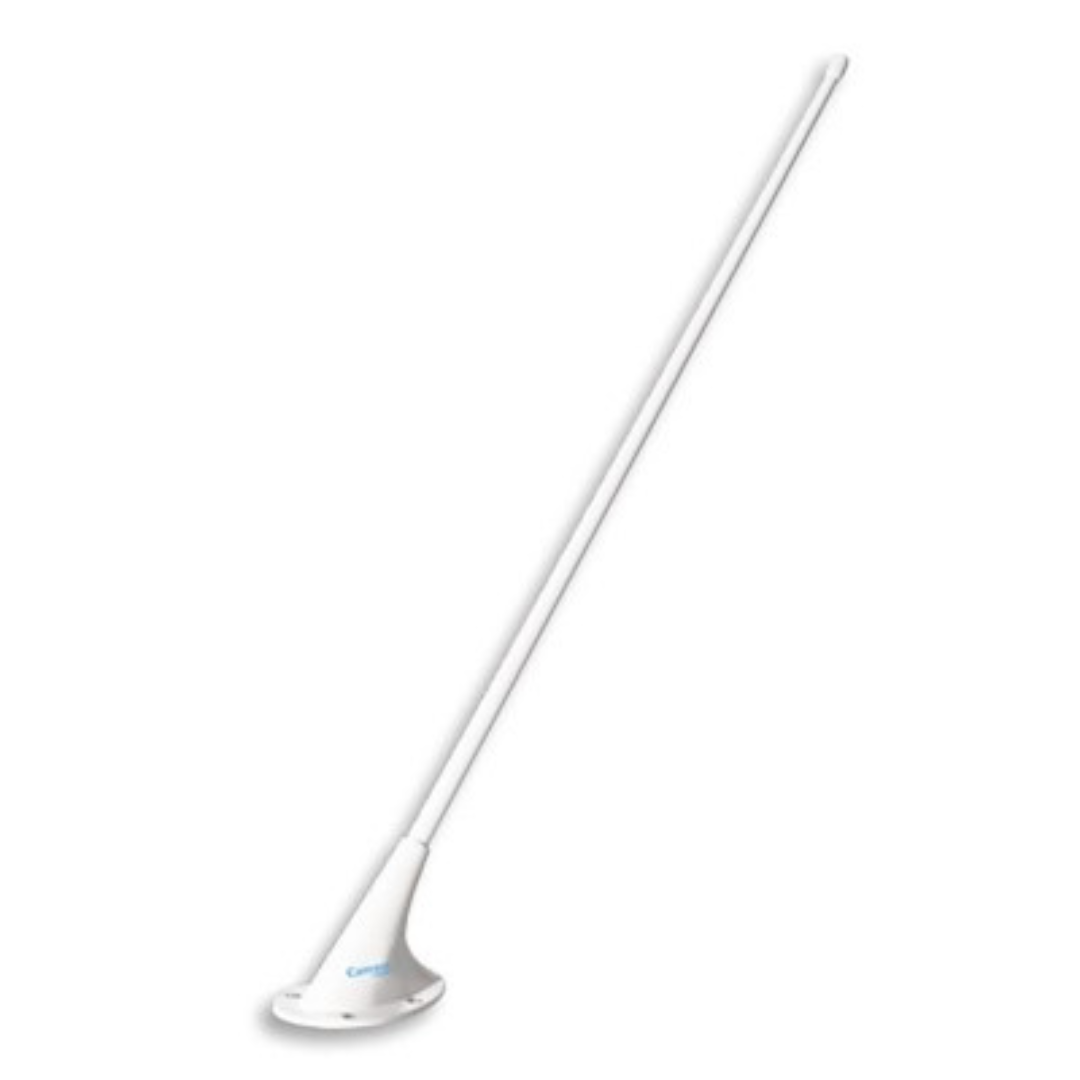

COMANT C-177-1 FM COM EXTENDED FREQUENCY WHIP
, , , , , ,

COMANT C-177-1 FM COM EXTENDED FREQUENCY WHIP

Part #: CI-177-1
Comant
Availability:

Disponível por encomenda
Adicionar a lista de desejo

CI1771

Overview

Comant’s four through hole mount whip style FM Communication antenna with BNC port. Designed for use over the public service FM extended frequency 2-meter band. Suitable for top mounting for light fixed wing single engine / multi-engine aircraft.
Part: CI-177-1 Categorias: , , , , , , Tag:
Peso 0.47 lbs
Dimensões 25 × 4 × 4 in
Brands

Specifications

  • Electrical
  • Frequency:138-174 MHz
  • VSWR: 3.0:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance: RF 50 Ohms
  • Resistance DC: Short Circuit
  • Power RF: 50 Watts
  • Mechanical
  • Material: Die Cast housing / Fiberglass whip
  • Finish: White Polyurethane Ename
  • Connector: BNC (female)
  • Environmental
  • Temperature: -55 to +55 Celsius
  • Altitude: 25,000 ft.
  • Federal Specifications
  • FAA TSO: C37d, C38d
  • RTCA Environmental: DO-138
  • Gasket : B12607-3
