AEROSPACE LOGIC 200 - TACHOMETER KIT - BENDIX MAGNETO
, ,

AEROSPACE LOGIC 200 – TACHOMETER KIT – BENDIX MAGNETO

Part #: TM200B
Aerospace Logic
Adicionar a lista de desejo

TM200B

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

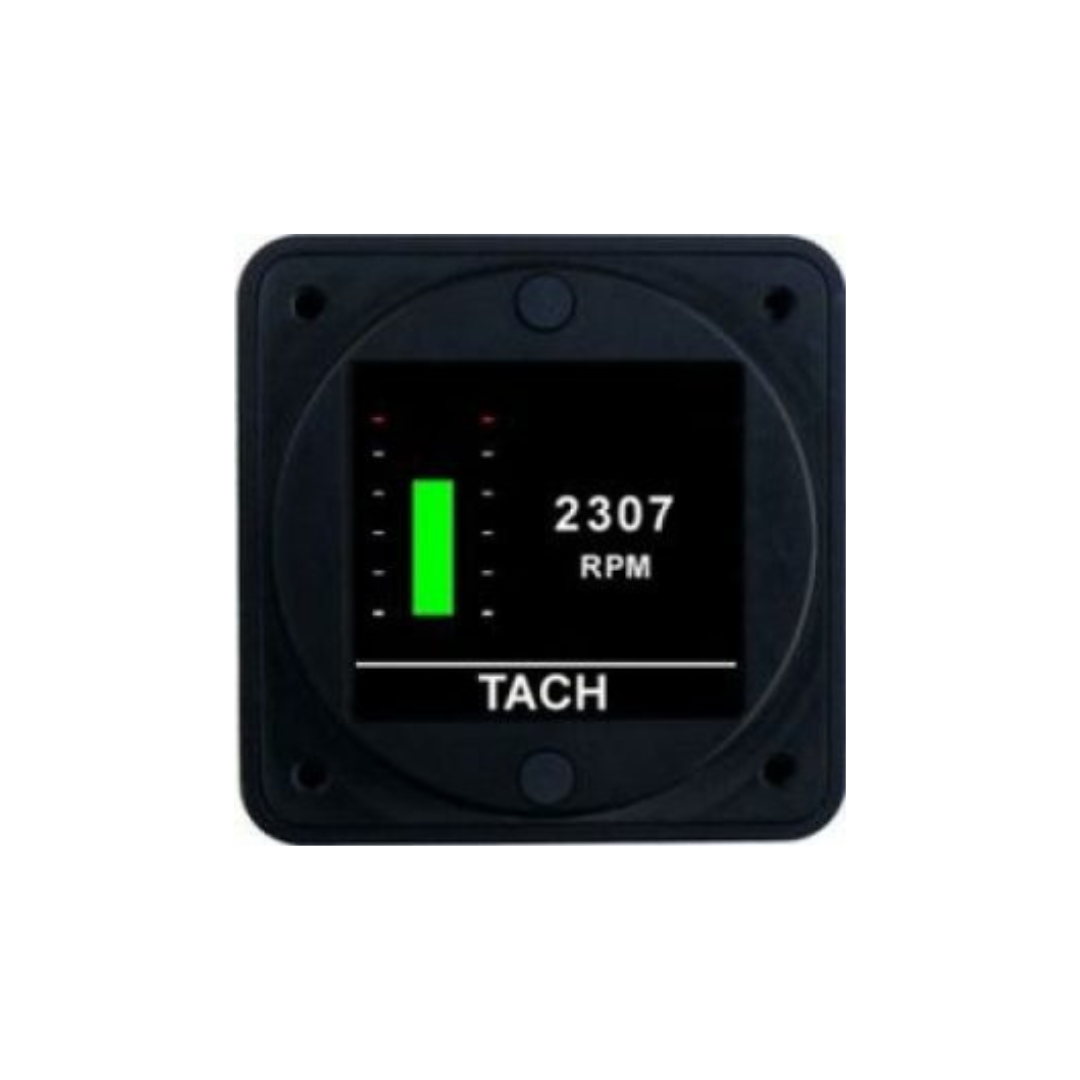

The TM200 is a precision tachometer that provides RPM data accurate to +/- 1RPM. It meets all the requirements of TSOC49b and provides the following functionality:

  • RPM indication in both analog and digital format, including support for engines that require a limited RPM range
  • Engine time
  • Trend graph function representing RPM vs. Time
Part: TM200B Categorias: , , Tags: ,
Peso 0.11 lbs
Dimensões 2.45 × 2.45 × .96 in
Brands

Specifications

This instrument requires a 0-5V DC pulse width modulated signal to provide RPM output. The input signal can be derived from an electronic ignition system or Hall Effect magneto
